TrueGrid® Computational Fluid Dynamics Model of an Impeller

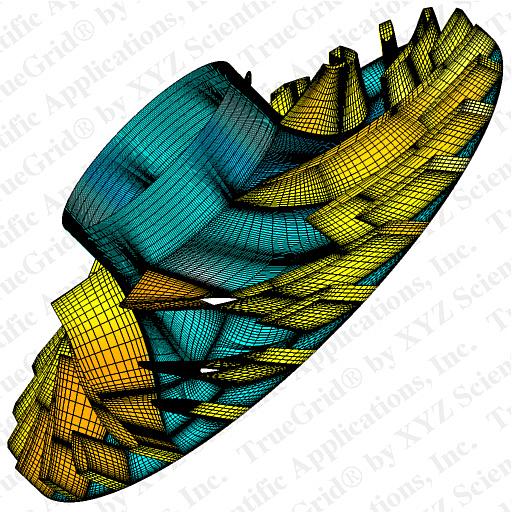

TrueGrid® mesh of an impeller

Zoom In (118K)

The geometry for this model was 10 digital flow paths across each blade. This mesh takes very little time to build using TrueGrid®. This mesh is for visualization. Usually a periodic portion is simulated. Selected faces of a replicated section are shown.
